Vigreux Columns

In the world of chemistry, liquid purification is a fundamental process, and distillation stands out as one of the most classic and effective techniques to achieve it. Among the various equipment used in this method, Vigreux columns hold a special place.

Although at first glance they may appear to be simple glass tubes, their unique internal design makes them indispensable tools for achieving efficient separations of liquid mixtures with close boiling points. Understanding how they work and their applications is key for any chemist or lab technician aiming to optimize purification processes. This guide explores the essentials of this type of laboratory column.

What is a Vigreux Distillation Column and How Does It Work?

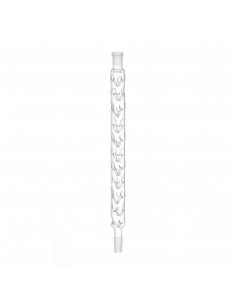

A Vigreux distillation column is a type of fractionating column used in laboratories to improve the efficiency of simple distillations. Its distinctive feature is a series of internal glass indentations, arranged in a spiral or zigzag pattern, which significantly increase the contact surface between the liquid and vapor phases.

The Principle Behind Its Efficiency: Theoretical Plates

The secret behind the Vigreux column’s effectiveness lies in its ability to function as a series of "theoretical plates." When the liquid mixture is heated in the distillation flask, vapors rise through the column. As the hot vapors encounter the cooler indentations, part of them condense and return to the liquid state. This descending liquid then interacts again with the ascending vapors, in a continuous cycle of evaporation and condensation. Each cycle contributes to more effective separation, as the vapor becomes progressively enriched in the more volatile component. This repeated interaction is what gives these columns their strong separation power.

Compared to Simple Distillation: Enhanced Efficiency

Unlike simple distillation, where the vapor condenses only once, the Vigreux column enables multiple condensation and evaporation cycles within the column. This results in a much sharper separation of the mixture’s components—even when their boiling points differ by just a few degrees. This boost in efficiency makes Vigreux columns especially valuable for more demanding purifications, emphasizing their importance in laboratory settings.

Design and Key Features of Vigreux Columns

The distinctive design of these distillation columns is what sets them apart and makes them so effective.

• Borosilicate Glass Body: Resistance and Visibility
  Vigreux columns are commonly made from borosilicate glass, a material resistant to thermal shock and chemical corrosion. This is crucial, as they are exposed to significant temperature changes during distillation. The transparency of glass also allows the chemist to visually monitor the boiling and condensation processes inside the column.

• Internal Indentations: Increased Contact Surface
  The spiral or sawtooth indentations are the most distinctive feature of a Vigreux column. These glass protrusions drastically increase the surface area inside the column, promoting more intimate contact between rising vapors and descending condensed liquid. This enhanced contact facilitates the heat and mass exchange processes that are fundamental to separation. The shape and density of these indentations directly influence the column’s efficiency.

• Ground Joints: Secure Equipment Connection
  At the ends of the column, you'll find standard ground glass joints (e.g., 19/22, 24/40, etc.). These joints ensure a secure and airtight connection with the distillation flask below and the distillation head (or condenser) above. Proper connection is vital to prevent vapor leaks and ensure distillation efficiency.

• Variety of Lengths: Adapting to Needs
  Vigreux columns are available in various lengths, allowing users to select the one that best fits their separation requirements. A longer column generally provides more theoretical plates, resulting in more efficient separation. However, it may also require more time and energy to reach equilibrium.

Typical Applications of Vigreux Fractionating Columns

Vigreux columns are versatile tools used across different branches of chemistry.

• Solvent Purification
  They are very useful for purifying organic solvents that have been recovered or contain small amounts of impurities with close boiling points. This is common in organic chemistry labs, where solvent purity is critical for reproducibility in reactions.

• Separation of Binary Mixtures
  When separating two liquids with relatively close boiling points, a Vigreux distillation column may be sufficient to achieve good separation, without resorting to more complex and expensive fractionating equipment.

• Preparation of Pure Compounds
  In chemical synthesis, desired products are often obtained mixed with by-products or unreacted reagents. Vigreux columns offer a practical option for isolating the pure compound through fractional distillation, yielding a higher-purity material for further study or applications.

• Education and Demonstration
  Due to their relative ease of use and the clear visual effect of condensation and evaporation, Vigreux columns are excellent for educational purposes and for demonstrating fractional distillation principles in undergraduate organic chemistry courses.

Advantages and Limitations of Using Vigreux Columns

Like any laboratory instrument, Vigreux columns have their pros and cons that should be considered.

Advantages

• Cost-Effectiveness
  Generally less expensive than more complex fractionating columns, such as packed or plate columns, making them accessible to most labs.

• Ease of Use
  Their simple design makes them easy to assemble, clean, and operate, reducing preparation time and maintenance needs.

• Good Efficiency for Moderate Separations
  For mixtures with moderate boiling point differences, Vigreux columns provide adequate separation efficiency without needing higher-end equipment.

• Low Hold-Up Volume
  Compared to packed columns, Vigreux columns retain less volume, which means less material is lost in the column—a key advantage when working with limited sample sizes.

Limitations

• Lower Efficiency Compared to Other Columns
  For mixtures with very close boiling points or when extremely high purity is required, Vigreux columns may not suffice. Columns with more theoretical plates (like packed or plate columns) may be needed.

• Pressure Drop
  The internal indentations can cause greater pressure drop across the column compared to a simple air-filled column, which could be a limiting factor in very high vacuum distillations.

• Not Suitable for Extreme Vacuum
  While they can be used under vacuum, their design may limit separation efficiency under ultra-high vacuum conditions, where vapor flow becomes more complex.

Maintenance and Care of Distillation Columns

To ensure the longevity and optimal performance of your Vigreux columns, proper maintenance is essential.

• Regular Cleaning
  After each use, the column should be thoroughly cleaned to remove any residue that may crystallize or adhere to the indentations. A suitable solvent for the distilled mixture and, if necessary, lab glassware-specific cleaning solutions are recommended.

• Complete Drying
  It is critical that the column is completely dry before its next use—especially when distilling water-sensitive liquids.

• Safe Storage
  Store Vigreux columns in a location where they are protected from shocks and breakage. Preferably in vertical racks or cushioned boxes with dividers to prevent contact between columns.

Vigreux columns are an invaluable component in the toolkit of any chemistry lab—especially those conducting organic synthesis and purification. Their clever design allows for significantly improved fractional distillation efficiency at a reasonable cost and with straightforward operation. Understanding their advantages and limitations will help you use them more effectively, achieving cleaner purifications and more reliable results in your experiments.
